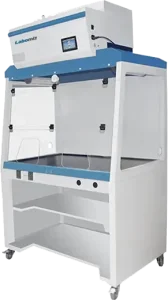

Ductless fume hood MDLFH-1A

Name: Ductless fume hood MDLFH-1A
Brand: Labomiz
SKU: MDLFH-1A

Model: MDLFH-1A · Category: Fume Hoods

Ductless fume hood MDLFH-1A is a floor mounted unit with built-in centrifugal blower. Three side transparent acrylic windows provides bright and open working environment.

Specifications

Material
Internal dimensions	910690740mm
External dimensions	10008302140mm
Work surface height	900 mm
Maximum opening	650 mm
Air velocity	0.4 m/sec ~ 0.6 m/sec
Front window	Acrylic window, Manual, Reversal design
Airflow Volume	136m³/h
Noise	≤58dB
Exterior	Cold-rolled steel with anti-bacteria powder coating
Side Window	Acrylic Window
Work Table	Chemical resistant phenolic resin
UV Lamp(optional)	253.7 nanometers
Fluorescent Lamp	14W*2
Chemical Filter	2 pcs
Power consumption	400 W
Power supply ( AC )	220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz
Packing Dimensions
Main Body	114010401490mm
Base Cabinet	114010401060mm
Weight	290kg

Features

LCD Touch screen control panel, easy to operate.

With memory function in case of power-failure.

8'' slope front ergonomics design, fatigue-free working posture.

Temperature and humidity sensors, can detect indoor temperature and humidity.

Three side transparent acrylic windows, front window reversal design, easy to operate.

The base cabinet is equipped with a middle partition.

Electronic control system, anti-overload, anti-electric shock, stable performance, long service life.

Inside and outside probe, detect indoor air pollution and filter conditions. Audible and visual alarm for changing filter.

Applications

Used in laboratories and research field where outside ventilation cannot be achieved. Use filters to trap hazardous, disposed properly without any environmental disturbance.
