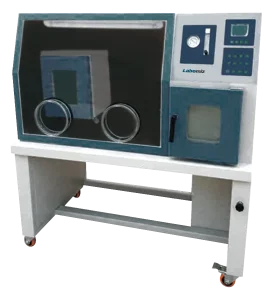

Anaerobic Incubator MAI-1A
Model: MAI-1A · Category: Incubators
Anaerobic incubator MAI-1A is a PID controlled unit with digital display that provides stable anaerobic environment. The unit is equipped with operating room, culture room, sampling chamber, control circuit, gas path and other components. Insulated stainless steel chamber and high temperature powder coated exterior protects against corrosion and chemical damage.
Specifications
| Temperature range | RT +5 °C to 50 °C |
|---|---|
| Temperature resolution | ± 1 °C |
| Time to anaerobic state of sample room | < 5 min |
| Time to anaerobic state of operation room | < 1 hour |
| Anaerobic state hold time (if stop providing trace gas mixture for operation room) | More than 12 hours |
| Gas mixture ratio | Nitrogen: 85% Hydrogen: 10% Carbon dioxide: 5% |
| Nitrogen | 99.9 % high purity nitrogen |
| Power | 950 W |
| Voltage | 220 V/ 50 Hz |
| Culture room size (W x D x H) | 200 x 190 x 300 mm |
| Operating room size (W x D x H) | 760 x 540 x 620 mm |
| Dimensions | 1200 x 750 x 1330 mm |
| Weight | 174 kg |
Features
| Microprocessor controlled system (uniform temperature) |
| UV lamp for disinfection |
| Gloves for comfortable operation |
| Operational panel - touch buttons and display (setting temperature, actual temperature) |
| Transparent and impact resistance glass window (sample viewing) |
| Sterilizer rods for vaccination needle disinfection |
| Gas circuit device regulates gas flow |
| Locking casters and large area workspace (user convenience) |
Applications
Used in microbiology, bacteriology, tissue culture research, quality control, R&D and industrial research for isolation and culture of anaerobic, microaerophilic, or capnophilic microorganisms in the anaerobic environment.
