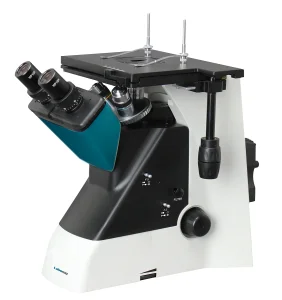

Inverted Metallurgical Microscope MIUM-2B
Model: MIUM-2B · Category: Microscopes
Inverted Metallurgical Microscope MIUM-2B is a tabletop inverted microscopes with infinity plan achromatic objectives. Features superior coaxial coarse and fine focusing adjustment. Four color filters with a brightness adjustable halogen lamp. Digital cameras can be added to the trinocular tube to take images and make image analysis.
Specifications
| Viewing Head | Sliding binocular viewing head |
|---|---|
| Eyepiece | Wide field eyepiece WF10X/18 mm Wide field eyepiece WF12.5X/14 mm |
| Objective | Achromatic objective 10X/0.25, WD=6.3 mm Plan achromatic objective 40X/0.65, WD=0.7 mm Achromatic objective 100X/1.25(oil), WD=0.1 mm |
| Nosepiece | Triple nosepiece |
| Focus | Fine division 0.002 mm Focusing range 30 mm |
| Stage | Mechanical stage 180 × 155 mm Moving range 40 × 30 mm Stage Clip |
| Illumination | Kohler illumination, 12 V / 20 W Halogen lamp |
| Filter | Blue, Green, Yellow and Ground filter |
Features
| Vertical objective movement for focusing |
| Infinity plan achromatic objectives |
| Infinite optical system provides excellent optical functions |
| Stable stand structure and comfortable operation |
| Blue filters for cooler and more neutral color of image |
| Green filters correct spherical achromatic aberrations |
| Ground glass filters for more even and diffused light |
Applications
Used in institutes and laboratories to observe and identify the structure of various metal and alloy, in electronics, chemical and instrumentation industry, to observe the opaque material and transparent material.
Optional Accessories
| Accessory No | Accessory | Specifications |
|---|---|---|
| A21IUM | Viewing head | Integrated sliding binocular digital head(3.0MP) |
| A22IUM | Eyepiece | Wide field eyepiece WF16X / 11 mm |
| A23IUM | Objective | LWD Plan achromatic objective 50X/0.75, WD=2 mm |
