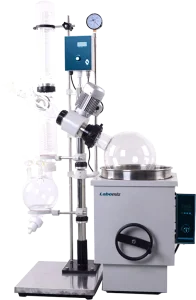

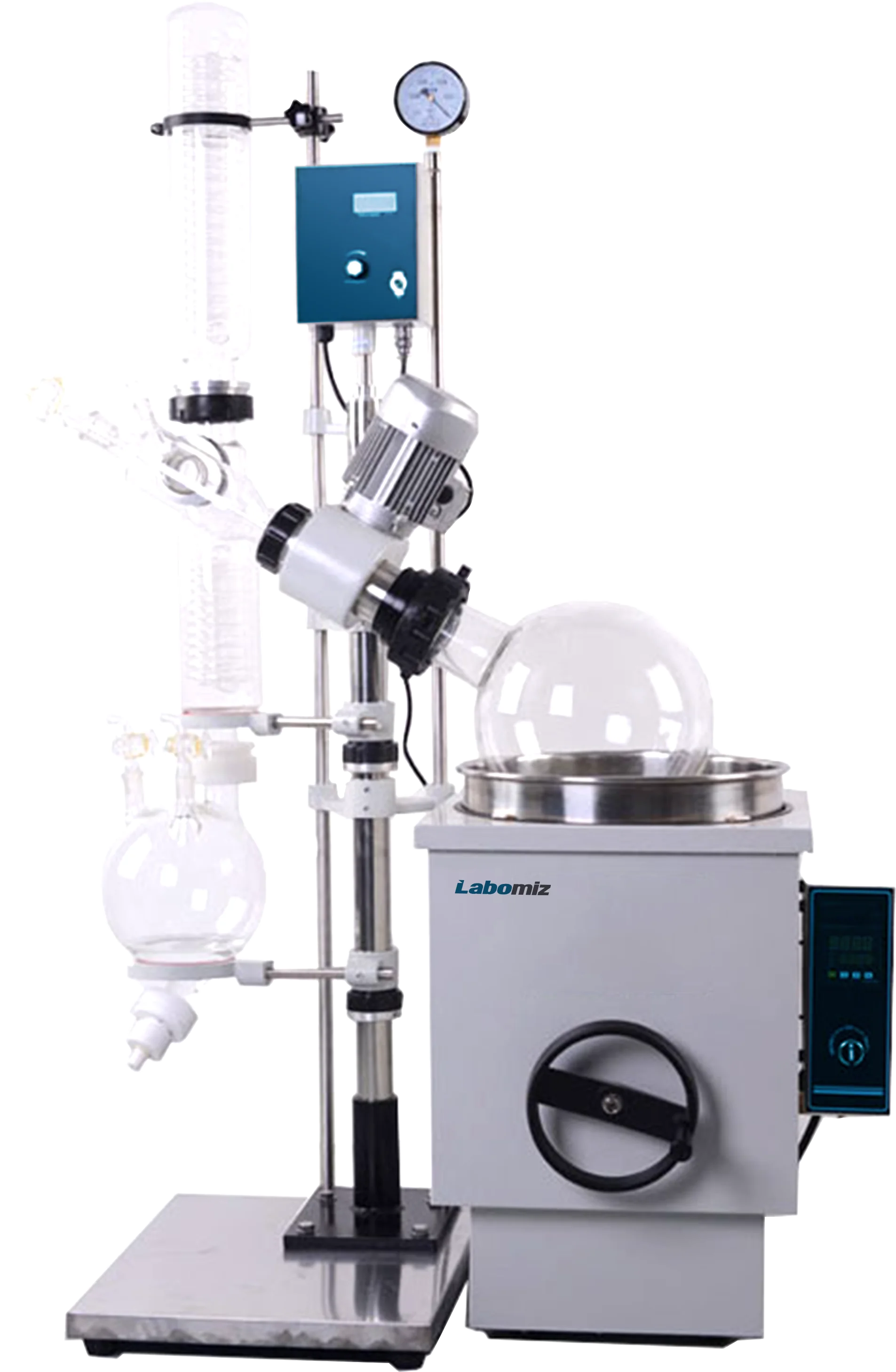

Motor lift rotary evaporator MLRE-1J
Model: MLRE-1J · Category: Rotary Evaporators
Motor lift rotary evaporator MLRE-1J is equipped with a 1 L ball grinding mouth receiving flask and a 2 L evaporating flask. It features a motor automatic lifting mode with a lifting height in the range of 0 ~ 140 mm. With a water bath temperature range from RT to 99 °C, this instruments carries out processing of many volatile samples.
Specifications
| Evaporating flask | 2 L |
|---|---|
| Receiving flask | 1 L |
| Flask rotating speed | LCD 0 rpm ~ 120 rpm |
| Motor power | 40 W |
| Water bath | RT ~ 99 °C |
| Water bath size | ɸ 230 × 130 mm |
| Water bath power | 1.5 kW |
| Lifting height | 0 mm ~ 140 mm |
| Voltage | 220 V ; 50 Hz / 60 Hz |
Features
| AC induction motor stepless speed regulation |
| Heating bath: Teflon Pot (RT ~ 99 °C ) |
| PTFE seals |
| High quality borosilicate materials |
| Efficient sealing system |
| Evaporation rates: ? 1 |
| High recovery rates |
| Double backflow integration standard condenser |
| Advanced speed frequency and reliable electronic speed control |
Applications
| No. | Item |
|---|---|
| 1 | Used for the distillation, evaporation of heat labile material’s condensation, crystallization, separation and recovery. |
