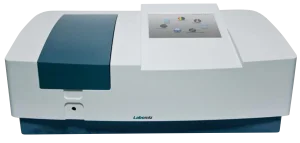

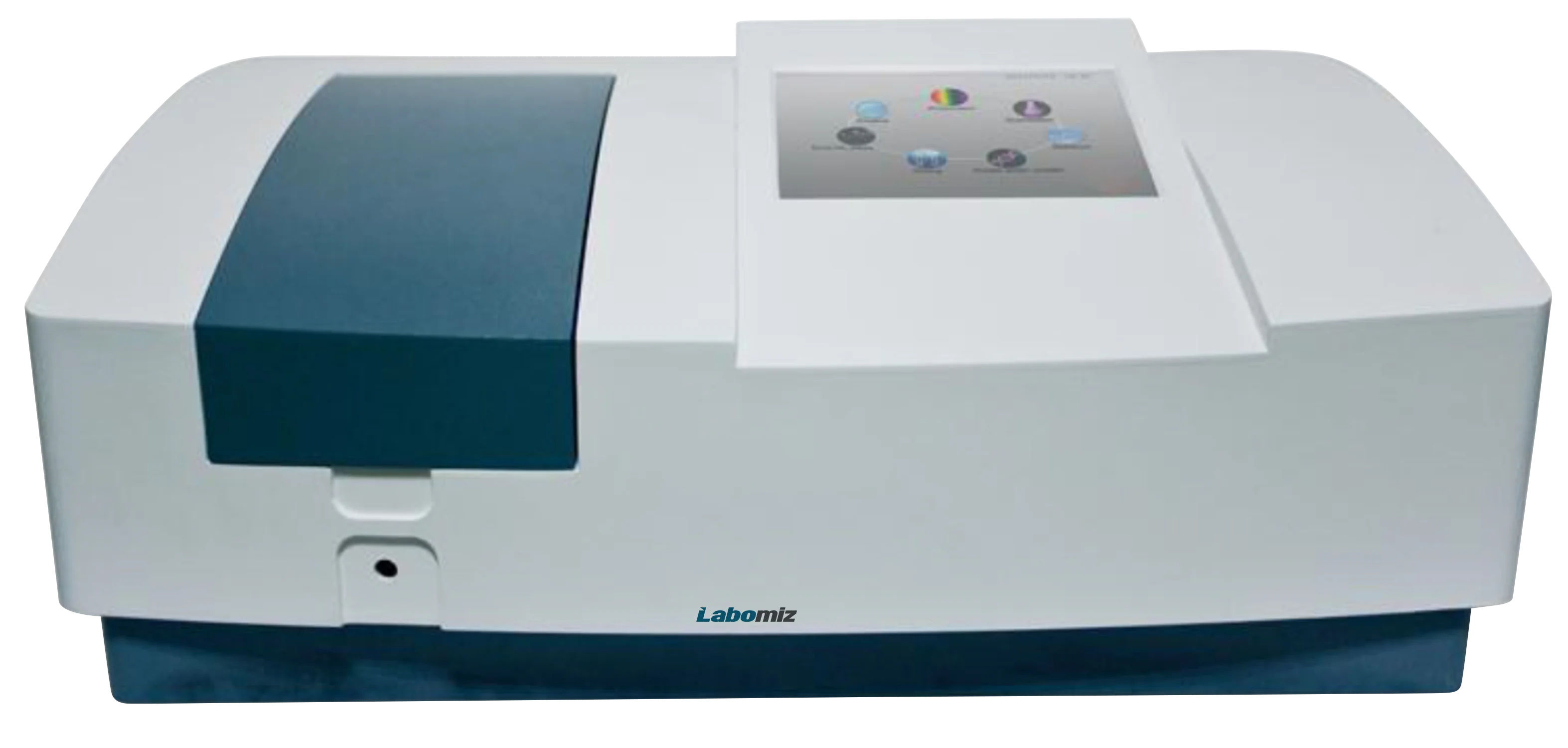

Touch screen UV-Visible Spectrophotometer MTUVS-1A
Model: MTUVS-1A · Category: Spectrophotometer
Touch screen UV-Visible Spectrophotometer MTUVS-1A is a single beam light intensity measuring unit with wavelength range of 190 nm ~ 1100 nm. It is equipped with color LCD touch screen control panel with tungsten and deuterium lamp as a light source ensuring stable output. Incorporated with high performance 64-bit A/D converter for optical data acquisition and sample processing. Individual design of optical and electrical system prevents cross effect of sample processing.
Specifications
| Optical system | Single beam |
|---|---|
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | ± 0.5 mm |
| Wavelength repeatability | 0.2 nm |
| Display | 9 inches VGA |
| Detector | Silicon photodiode |
| Scan speed | HIGH, MEDIUM, LOW |
| Stray light | 0.05 % T at 220 nm,360 nm |
| Light source | Tungsten and Deuterium |
| Power | AC 110 V,50 Hz AC 220 V,60 Hz |
| Dimensions ( L x W x H ) | 480 x 360 x 190 mm |
| Weight | 20 kg |
Features
| Single beam optical system |
| Detector - Silicon photodiode |
| Large data storage capacity |
| 32-bit microcontroller optimizes measurement speed |
| Output - USB , SD and parallel port for printer |
| Mirror surface coating with SiO2 film prevents optical parts corrosion |
Applications
Used in biochemistry, clinical and research labs, pharmaceutical, agriculture, environmental protection for concentration measurement, sample analysis, impurities detection, chemical kinetics, etc.
