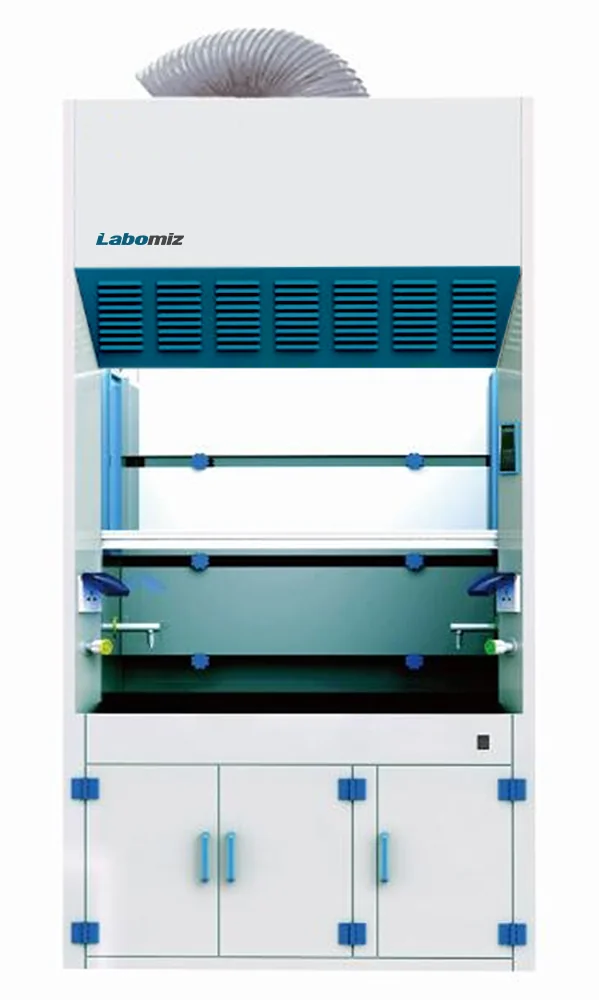

Ducted fume hood MDFH-3C
Model: MDFH-3C · Category: Fume Hoods
Ducted fume hood MDFH-3C is a floor mounted unit with built-in microprocessor control system. Porcelain white provides unique appearance and corrosion resistant to the fume hood. Front thick transparent toughened glass gives bright and open working environment. Built-in axial flow blower controls air stream speed. Standard PVC exhaust duct removes toxic fumes and provides excellent chemical resistance.
Specifications
| Internal dimensions | 1320 × 570 × 872 mm |
|---|---|
| External dimensions | 1540 × 800 × 2200 mm |
| Work surface height | 850 mm |
| Maximum opening | 740 mm |
| Air velocity | 0.3 m/sec ~ 0.8 m/sec |
| Front window | 5 mm toughened glass |
| LED lamp | 30 W × 2 |
| Exhaust duct length | 4 m |
| Exhaust duct diameter | 250 mm |
| Noise | ≤ 60 dB |
| Power consumption | 360 W |
| Power supply ( AC ) | 220 V ±10 %, 50 / 60 Hz 110 V ± 10 %, 60 Hz |
| Main body dimensions | 1690 × 940 × 1620 mm |
| Base cabinet dimensions | 1690 × 940 × 1620 mm |
| Weights | 225 kg |
Features
| Adjustable air speed ( 9 Level ) |
| Two water proof socket |
| Manual front glass window ( height adjustable ) |
| Remote control water and gas |
| Anti-corrosive water tap |
| Phenolic resin coated work table ( Chemical resistance ) |
| External centrifugal blower ( Optional ) |
Applications
Used to completely remove chemical fumes ( potential toxics ) from laboratories and protects the lab environments. Used during general chemical applications.
