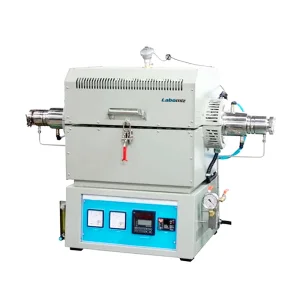

Tube furnace MTF-2A
Model: MTF-2A · Category: Furnaces
Tube furnace MTF-2A is a box type table top unit with provision of gas insertion. PID digital controller installed at the base of chamber controls heat temperature, air flow, pressure and speed. Selection of tube material depends on the vacuum status and temperature. FeCrAl alloy molded heating element provides intermediate electric resistance and withstand high temperature. Safety devices include ELB (elastic load balancing) and overheating protection system for end user safety.
Specifications
| Heater power | 3 kW |
|---|---|
| Heating tube diameter ( Ø ) | 50 mm |
| Heating tube length | 300 mm |
| Maximum temperature range | 1000 °C |
| Working temperature range | 300 °C ~ 900 °C |
| Temperature accuracy | ± 1 % ( at setting temperature ) |
| Power ( 1 phase ) | AC 230 V 50 Hz / 60 Hz |
| Overall dimensions ( W × D × H ) | 550 × 500 × 755 mm |
| Weight | 42 kg |
Features
| Ceramic wool and board tube insulation |
| Nitrogen gas atmosphere |
| Optional gases : Ar, H?, He, CO, CO? |
| Gas flow meter (rate of gas flow measurement) |
| K type thermocouple (Chromel/Alumel) exhibits good corrosion resistance |
| Solid-state relay (SSR) type temperature regulator (heat dissipation) |
| FIB module (interior material) |
| Steel plate with powder coated finish (exterior material) |
Applications
Used in laboratory research, materials testing, ceramics, crystal growth, heat treating, annealing, melting, firing, cleaning, etc.
