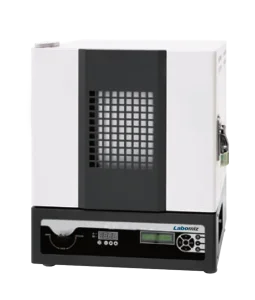

Vacuum furnace MVFF-1A
Model: MVFF-1A · Category: Furnaces
Vacuum furnace MVFF-1A is a highly efficient stainless steel table top unit. Its has advanced sensor system that sounds a loud alarm in case the safe door-locking function is blocked. Features auto-tuning function to keep high-performance as well as to stabilize temperature compensation. Consists of safety features that protects the system from over temperature.
Specifications
| Chamber volume | 2.2 L |
|---|---|
| Heater zone(W x D x H) | 130 x 130 x 120 mm |
| External dimension (W x D x H) | 530 x 460 x 680 mm |
| Vacuum range | 760 mmHg |
| Heater | 1.4 kW |
| Temperature range | 400 ̴ 900 °C |
| Working temperature | 800 °C |
| Temperature controller | LCD PID program control system |
| Sensor | PT- 100 Ω |
| Regulator | SSR controller |
| Thermocouple | K - type |
| Timer | 99 hrs. 59 mins |
| Power | AC 220 V , 60 Hz |
Features
| Auto-tuning function |
| Sensor alarm function |
| Power supply is automatically stopped when the door opens to prevent the heater from any potential breakdown caused by continuous electricity supply |
| Digital display vacuum range |
| Ceramic wool insulation |
| Door packing is done with molded heat resistant silicon rubber |
Applications
Used in industries as well as research laboratories to provide heat treatment, melting glassware, and development of new products.
